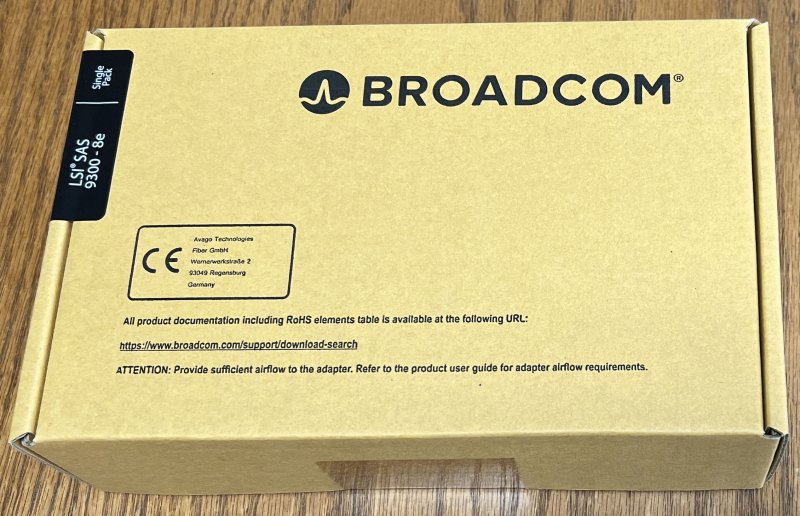

LSI00343 - 9300-8e SGL, SAS3 12Gb/s 8 External Ports SFF-8644 PCIe 3.0, JBOD, w/ LP bracket, No cable Box RoHS. H5-25460

(0)
Write review
 In stock
$539.00
  • Model
  • LSI00343/9300-8e SGL

Description:

LSI00343 - 9300-8e SGL, SAS3 12Gb/s 8 External Ports SFF-8644 PCIe 3.0, JBOD, w/ LP bracket, No cable Box RoHS





* Features



·  Eight ports of 12Gb/s SAS + SATA ports

·  Eight lanes of PCI Express 3.0

·  Low-profile form factor

·  Mini-SAS HD connectors

·  LSI SAS 3008 12Gb/s SAS+SATA controller

·  Supports SSDs, HDDs, and tape drives

·  Provides connectivity in a low-profile form factor

·  8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications

·  High performance with 12Gb/s SAS data transfer rates





* Technical Specs



Solution Provided                                             High performance for high-end servers connecting to large scale storage enclosures and for internal drive connectivity in 1U/2U servers and workstations.

In the Box                                                         9300-8e HBA & documentation CD

IO Controller                                                    LSISAS3008 Fusion MPT 2.5

Port Count                                                        8 port, external

Connectors                                                       Mini SAS HD SFF8644 Two (x4)

Storage Connectivity Data Transfer Rates   12Gb/s SAS 3.0 Compliant

SAS Bandwidth                                                Half Duplex (x4 wide bus) 4800 MB/s

Port Configurations                                         8 ea, x1 ports (individual drives) 2 ea, x4 wide port

Host Bus                                                          x8 lane, PCIe 3.0

PCI Data Burst Transfer Rates                     Half Duplex x8, PCIe 3.0, 8000 MB/s

Form Factor                                                     Low Profile

Physical Dimensions                                       2.6" x 6.6"

Brackets                                                          Full Height and low profile vented

Cable Support                                                  Passive Copper, Active Optical

Operating Voltage                                           +12V +/-8%; 3.3V +/-9%

PCI Power (Nominal)                                       14.5W

Device Support                                                1024 Non-RAID devices

Environmental                                                  Operating: 0°C to 55°C Storage: -45°C to 105°C, 5 to 90% non-condensing, Airflow: 200 LFM

MTBF                                                               >2,800,000 hours

Regulatory Certifications                                EMC: Class B-US (CFR 47, P15B); Canada (ICES-00); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE

OS Support                                                       Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware™, FreeBSD®, VMware® and more.   * Visit the LSI download Center for the most complete list of supported operating systems: www.lsi.com/channel/support

Warranty                                                          3 years, free advanced technical support, advanced replacement option

LSI Ordering Part Number                             LSI00343
