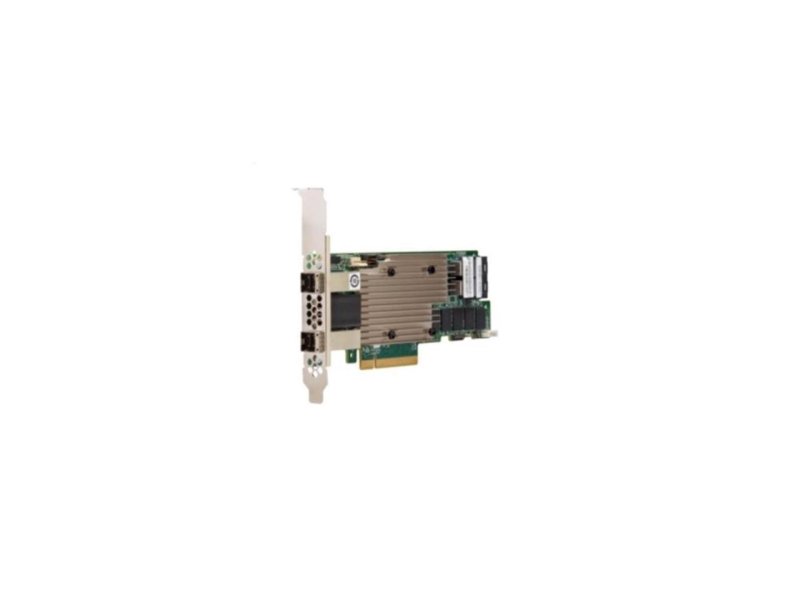

Broadcom 05-50031-00 MegaRAID 9480-8i8e 16-Port 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe RAID Controller
| Manufacturer P/N |
05-50031-00 |
| |
MegaRAID 9480-8i8e |
| External Ports |
8 |
| External Connectors |
2 Mini-SAS HD SFF8644 |
| Management Software |
LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| Cache Protection |
CacheVault CVPM05 |
| Physical Dimensions |
Low profile 6.127” x 2.712” |
| Host Bus Type |
x8 lane PCI Express® 3.1 |
| Cache Memory |
4GB 2133 MHz DDR4 SDRAM |
| Internal Ports |
8 |
| Devices Supported |
SAS/SATA: 240, NVMe: 24 |
| Internal Connectors |
2 Mini-SAS HD x4 SFF-8643 |
| Operating Temperature |
0°C to 55°C |
| Operating Voltage (V) |
+12V +/-8%, 3.3V +/-9% |
| OS |
Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/down-load-serach for details on versions. |
| Regulatory Certifications |
Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| |
|
| I/O Processor / SAS Controller |
SAS3516 dual-core RAID-on-Chip (ROC) |
|
