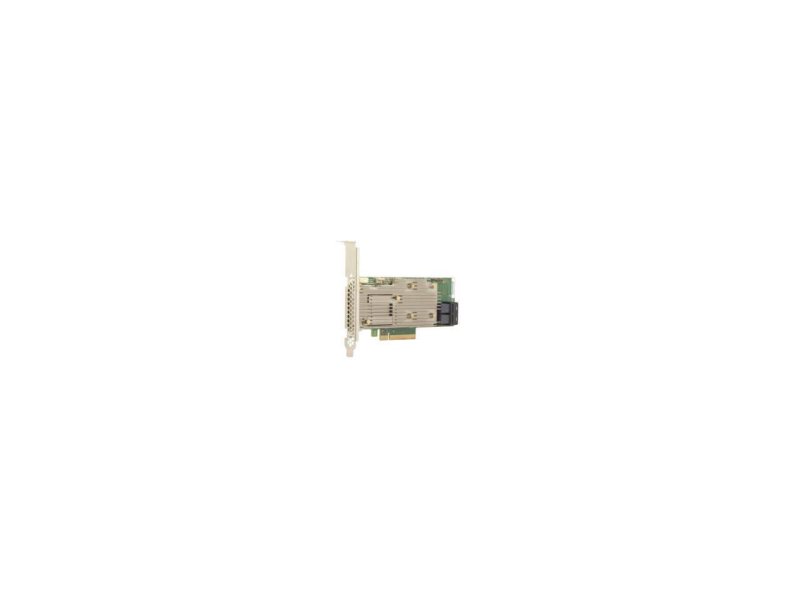

Broadcom 05-50011-02 MegaRAID 9460-8i 12Gb/s SAS/SATA/NVMe Tri-Mode PCIe 3.1 RAID Controller
Specifications
- Mfr Part Number: 05-50011-02/ 9460-8I SGL
- Features:
- Connect up to 255 SAS/SATA devices or 24 NVMe devices per controller
- Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
- Support critical, high-bandwidth applications with PCIe 3.1 connectivity
- Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
- Add more protection and peace of mind with CacheVault flash cache protection
- Ports: 8 internal
- Connectors: Two (x4) SFF-8643
- Storage Interface Support: SAS, SATA, PCIe (NVMe)
- Max PCIe (NVMe) Direct Attach Devices: Two x4, Four x2
- Max Devices Per Controller: SAS/SATA - 255, NVMe - 4 x4, up to 24 x2 or x4
- Cache Memory: 2 GB 2133MHz DDR4 SDRAM
- I/O Processor / SAS Controller: SAS3508
- Host Bus Type: PCI-Express 3.1 x8
- Cache Protection: CacheVault CVPM05
- Key RAID Data Protection Features:
- RAID levels 0, 1, 5, and 6
- RAID spans 10, 50, and 60
- SDS Personality with EPD and JBOD
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- Auto resume after loss of system power during array rebuild or reconstruction (RLM)
- Single controller Multipathing
- Load Balancing
- Configurable stripe size up to 1MB
- Fast initialization for quick array setup
- Check Consistency for background data integrity
- SSD Support with SSD Guard technology
- Patrol read for media scanning and repairing
- 64 virtual drive support (32 for 9440)
- DDF compliant Configuration on Disk (COD)
- S.M.A.R.T support
- Global and dedicated Hot Spare with Revertible Hot Spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
- Enclosure management
- SES (inband)
- SGPIO (sideband)
- DataBolt bandwidth optimizer technology support for compatible expander-based enclosures
- Shield state drive diagnostic technology
|
