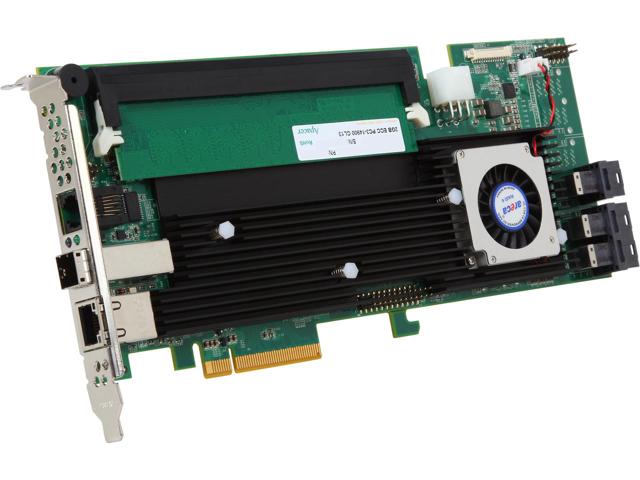

Areca ARC-1883ix-12-2NC 12+4 port 12Gb/s SAS PCIe 3.0 (x8) Dual Core RAID Controller w/ 2GB DDR3 ECC Cache - No Cables

(0)
Write review
 In stock
$1,129.00 $299.00
Product Overview
  • Model
  • ARC-1883ix-12-2NC

Description:

ARC-1883ix-12-2NC 12+4 port 12Gb/s SAS PCIe 3.0 (x8) Dual Core RAID Controller w/ 2GB DDR3 ECC Cache (3x Internal SFF-8643 Ports + 1x Enternal SFF-8644 Port) - No Cables




ARC-1883ix-12/16/24

(16-28 Ports 12Gb/s SAS/SATA RAID Adapters )

The new third generation ARC-1883 family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.2 GHz dual core ROC processor, DDR3-1866 memory architecture and PCIe 3.0 interface for the most performance-hungry database and IT applications. The ARC-1883 family includes 8 ports low profile as well as full height 12/16/24 internal ports with additional 4 external ports with mini SAS HD connectors for 12Gb/s throughput on each port.



PCIe 3.0 12Gb/s SAS RAID Controller
Model Name
ARC-1883ix-12
ARC-1883ix-16
ARC-1883ix-24
I/O Processor
Dual Core RAID-on-Chip 1.2 GHz
On-Board Cache
One 240-pin DIMM socket for 2GB(default) DDR3-1866, 1RX8, ECC module
- up to 4GB or 8GB DDR3-1866, 1RX8,
Unbuffered/ Registered ECC module or
- up to 4GB or 8GB DDR3-1600, 2RX8,
Unbuffered/ Registered ECC module
Driver Connector
3 x SFF-8643
1 x SFF-8644
4 x SFF-8643
1 x SFF-8644
6 x SFF-8643
1 x SFF-8644
Drive Support Up to 256 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS Expander
FBM/BBM Support ARC-1883-CAP (support cache 2GB)/
ARC-1883-BAT (support cache 4~8GB)/
ARC-6120BA-T121-12G
Form Factor (LxH)
Full Height: 254 x 98.4 mm
