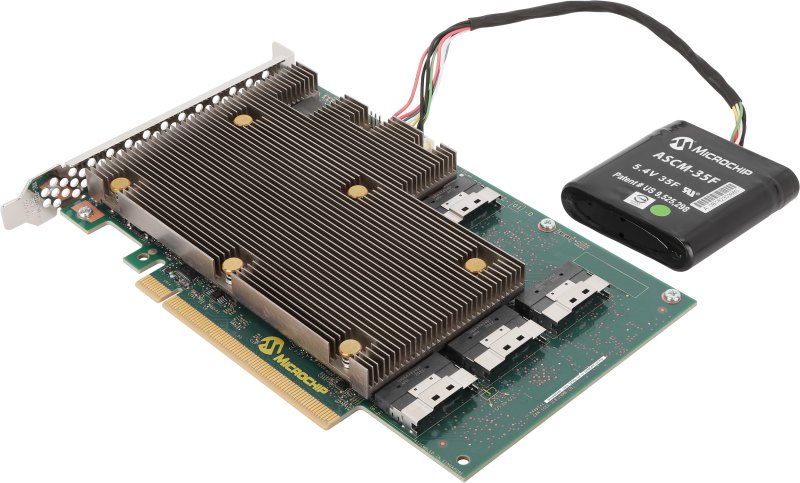

Adaptec SmartRAID Ultra 3258Up-32i/e 24 Gbps PCIe Gen 4 SAS/SATA/NVMe SmartRAID adapter
| Operating System |
| |
Microsoft Windows Server, Windows 10, Red Hat Enterprise Linux®, CentOS, SuSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Oracle Linux, Citrix XenServer, Solaris, FreeBSD, VMware ESXi and open-source Linux drivers/inbox drivers
For a detailed list, visit ASK Answer ID 17509. |
| |
| CPU Architecture |
| |
Intel, AMD/span> |
| |
| Benefits |
| |
• Ideal for enabling PCIe Gen 4 storage capabilities for SMB and enterprise and hyperscale applications, with proven reliability
• Tri-mode support for SAS/SATA/NVMe devices: 16G Gen 4 NVMe, 24G SAS4 and 6G SATA
• Built-in PCIe switch to enable lowest possible latency access to NVMe storage devices for HBA and RAID modes
• Superior performance and bandwidth enabling up to 29.6 GB/s throughput and 3.5M+ IOPs 4K RR
• 144-bit DDR4 3200 MHz memory option with enhanced throughput on redundant RAID writes and NVMe CBE (11.7 GByte/s for RAID5 writes and 17 GB/s for NVMe CBE)
• Accelerates storage with up to 8 GB of high-speed DRAM cache with integrated cache protection |
| |
| Key RAID Features |
| |
• maxCache caching software
• Mixed mode allows devices connected to the same adapter to be used in RAID and HBA modes simultaneously
• Adapter dynamic power management to save up to 30% power
• Supports up to 256 SAS or SATA devices using SAS expanders
• Support for NVMe target devices with Gen 3/4 interfaces (x1, x2, x4, and x8 wide interfaces)
• Support for 64 logical drives/RAID arrays
• Support for native 4K sector SAS and SATA devices in addition to 512-byte sector devices
• RAID 1 and RAID 10 triple mirroring, move array, and split mirroring
• Online capacity expansion and RAID level migration
• Dynamic caching algorithm
• Native command queuing (NCQ)
• Background initialization
• Hot-plug drive support
• RAID level migration
• Hot spares—global, dedicated, and pooled (including copyback)
• Enclosure management capabilities—SAS/ SATA: SGPIO and SES
• PBSI, MCTP and Platform Level Data Model (PLDM) and Redfish Device Enablement (RDE) for out-of-band (BMC) management
• Universal Backplane Management (UBM) support
• Virtual Pin Port Management (VPP)
• Configurable stripe size
• S.M.A.R.T. support
• Dynamic sector repair
• Staggered drive spin-up
• Bootable array support through legacy and uEFI bios
• Smart PQI driver with multip queue and MSI-X support for all supported operating systems
• Secure boot, secure updates, and attestation support
• Secure boot support for the uEFI host BIOS
• USB image with offline maxView tools www.adaptec.com/en-us/support/start |
| Data Transfer Rate |
| |
Tri-mode support for SAS/SATA/NVMe devices: 16G Gen 4 NVMe, 24G SAS-4 and 6G SATA |
| |
| Bus System Interface |
| |
16-lane PCIe Gen 4 |
| |
| Form Factor |
| |
Full-Height, Half-Length |
| |
| Package Contents |
| |
• SmartRAID Ultra 3258p-32i /e adapter
• Additional low profile vented bracket |
| |
| Physical Size |
| |
4.376"H × 6.6"L (111.15 mm × 167.65 mm) |
| |
| Operating Temperature |
| |
0 °C to 55 °C with 250 LFM airflow.
Note: This adapter contains a powerful RAID processor that requires adequate airflow to operate reliably. Only install this card into server or PC chassis with at least 250 LFM airflow. Temperature measured 1 inch from RAID adapter. |
|
