iStarUSA DAGE440M1-MS 4-bay 3.5" SAS/SATA 6.0 Gb/s miniSAS
Hotswap Enclosures
- Supports Up to 4x 3.5" SAS I/II & SATA I/II/III HDDs
- 80mm Cooling Fans for Ventilation
- miniSAS SFF8088 Interface for Easy Connection
- Color Trays as Options
* Product Introduction

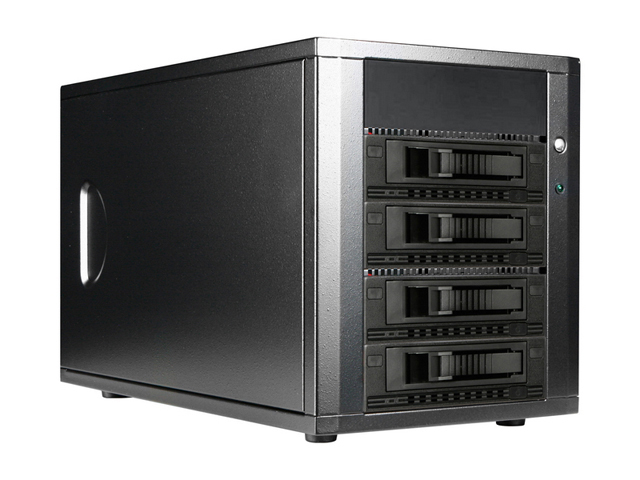

DAGE440M1-MS is an external 4-bay SAS/SATA disk array storage tower. It
provides users a most big storage capacity for up to 4 hard drives for RAID
configuration in compact size. This external tower is designed with one high
quality SFF8088 connector. Ball bearing 80mm cooling fan offers long lasting and
enhanced thermal cooling solution.
* Product Specifications
| Model Number |
DAGE440M1-MS |
| RoHS Compliance Version |
Yes |
| Host Interface |
miniSAS (SFF8088) |
| HDD Interface |
3.5" SAS I/II & SATA I/II/III |
| Hotswap 3.5" |
4 |
| LED Display |
Power and HDD Activity |
| Material |
Steel |
| Main Color |
Black |
| Power Supply |
300 |
| Raid Level |
Configured by Host Controller |
| Cooling Fan |
1x80mm |
Ordering Information
(Part Number) |
Black HDD Handle:DAGE440M1BK-MS

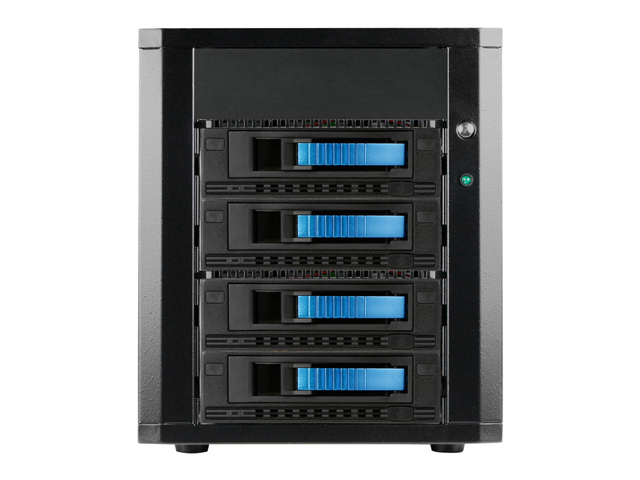

Blue HDD Handle:DAGE440M1BL-MS

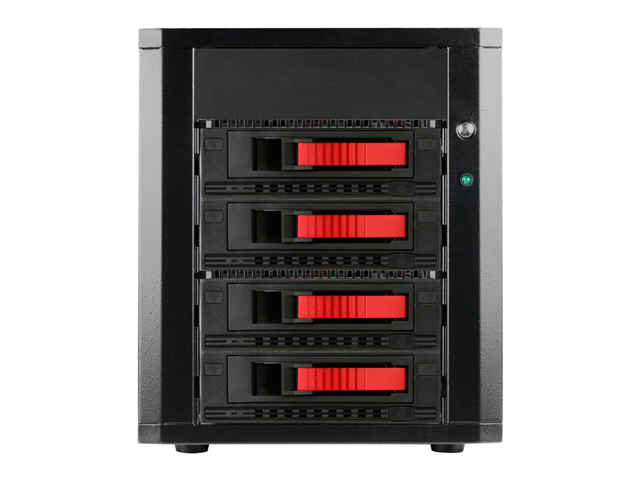

Red HDD Handle:DAGE440M1RD-MS

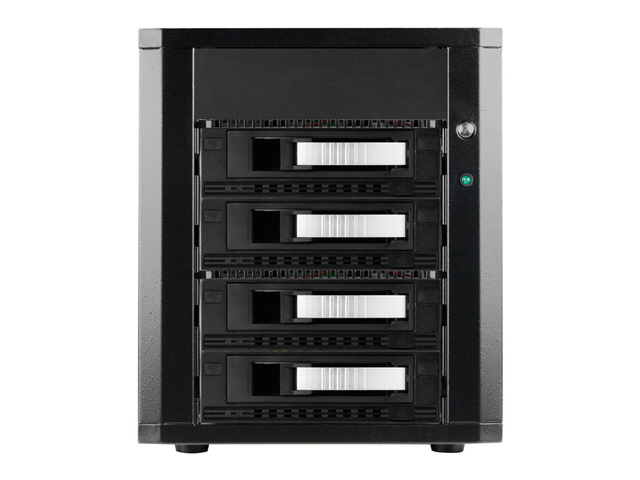

Silver HDD Handle:DAGE440M1SL-MS |
| Dimensions (WxHxD) |
7.00" x 11.00" x 16.00"
177.8 mm x 279.4 mm x 406.4 mm |
